Nemours/Alfred I. duPont Hospital for Children Wilmington, Delaware

A combination of PPG metal coatings and glass helps to create this bright curtain wall for the exterior façade of the Nemours/DuPont hospital, which has achieved LEED certification at the Silver level.

June 2021

Blog tag icon CASE STUDIES

When Paul Asteris of FKP Architects first conceived the signature façade of the newly expanded Nemours/Alfred I. duPont Hospital for Children, his vision was to have the glass and metal framing mimic the protective framework of an arbor. The use of Duranar Sunstorm coatings combined with a random discovery of Azuria® glass by PPG helped make that idea a reality.

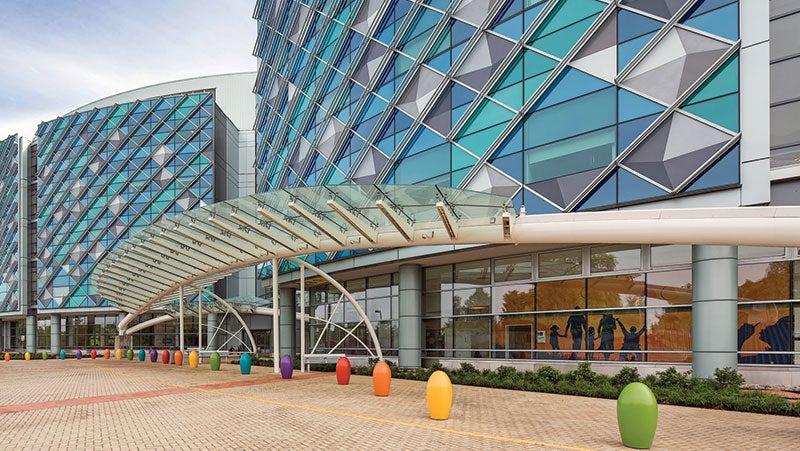

Exterior of Nemours Hospital for Children in Wilmington, Delaware, showing the building’s signature blue and green, glass and metal façade.

Located in Wilmington, Delaware, Nemours/duPont hospital has undergone a series of expansions since its founding in the 1940s. The latest, a 450,000 square-foot addition, was designed to maintain the facility’s legacy of world-class treatment by drawing on the latest principles in health care design, including cozy, child-friendlypatient rooms; welcoming, amenity-filled spaces for families and caregivers; healing gardens and large, open areas filled with abundant natural light.

As lead architect for the project, Asteris sought to appropriate the "playful elegance" of the gardens surrounding the neighboring duPont family mansion by placing a vast atrium at the center of the hospital and designing a bright arborpatterned curtain wall for the exterior façade.

A combination of PPG metal coatings and glass, including SOLARBAN 70XL glass, Duranar XL, and Duranar Sunstorm coatings, together with a timely recommendation for tinted AZURIA® glass, not only helped him achieve those aims, but enabled the project to stay on schedule, too.

"The glass we were originally looking at [for the façade] had a blue/gray tint and was coming off a bit flat," Asteris said. "By chance, a PPG representative visiting our office saw the renderings and offered to help with some samples. He came back using Azuria [glass] with some spandrel tones and it had the color punch we were looking for. That really helped us get the project back on track, as we were in danger of disrupting the schedule."

The aqua-blue appearance of Azuria glass is complemented throughout the hospital by tall panels of clear Solarban 70XL glass and in the skylights that top the soaring central atrium. The goal with both products was to bring as much daylight as possible into occupied spaces.

"We believe this is a critical mission for the hospitals we design," Asteris said. "Numerous studies confirm that natural light is conducive to creating learning and healing environments. To us, this just seems like common sense."

The jewel-like glitter of the hospital exterior is further enhanced by the application of Duranar XL and Duranar Sunstorm coatings. As two-component fluoropolymer coatings flecked with mica, Duranar Sunstorm coatings bring understated brilliance and exceptional durability to the metal framing on the main curtain wall. Three-component Duranar XL coatings in a custom "Seafoam Green" finish the metal panels that surround the emergency room entrance. The fluoropolymer resins in Duranar coatings are chemically inert, which enables them to provide decades of color and gloss retention, as well as long-term resistance to environmental stresses such as acid rain and ultraviolet light.

The colorful entrance of Nemours Hospital for Children uses PPG's Duranar XL coatings in "Seafoam Green" to finish the metal panels.

The curtain wall also is integral to the energy management system, which was designed to help the hospital achieve LEED® (Leadership in Energy and Environmental Design) certification at the Silver level. "We chose glass products that would meet the current energy code, then improve it by 10 percent," Asteris explained.

Solarban 70XL glass, which features PPG's proprietary triplesilver coating technology, has visible light transmittance (VLT) of 64 percent and a solar heat gain coefficient (SHGC) of 0.27 when combined with clear glass in a standard 1-inch insulating glass unit (IGU). The resulting 2.37 light-to-solar gain (LSG) ratio makes it one of the highest-performing products in the industry.

Even with its rich aqua-blue color, Azuria glass has a similar VLT of 61 percent in the same configuration, along with a SHGC of 0.39. Together, they yield an LSG ratio of 1.56, which is extraordinary for a tinted glass.

Solar tubes and the strategic placement of fritting on the glass façade alleviate the heat and glare of direct sunlight during the summer and channel light deeply into patient rooms to make them feel more spacious. Other green-related components in the hospital include water retention systems, roof gardens and enhanced mechanical systems.

To date, the feedback Asteris has received on the hospital's design and performance has been universally positive. "The intent was to create a facility that would set Nemours apart from other children’s hospitals. The administration wanted this to be a place where families could bring their kids to get the best care available, so we needed to create spaces that would foster a family-friendly healing environment. Anyone who visits the hospital will sense that truly is the case."
